BC-EA8003

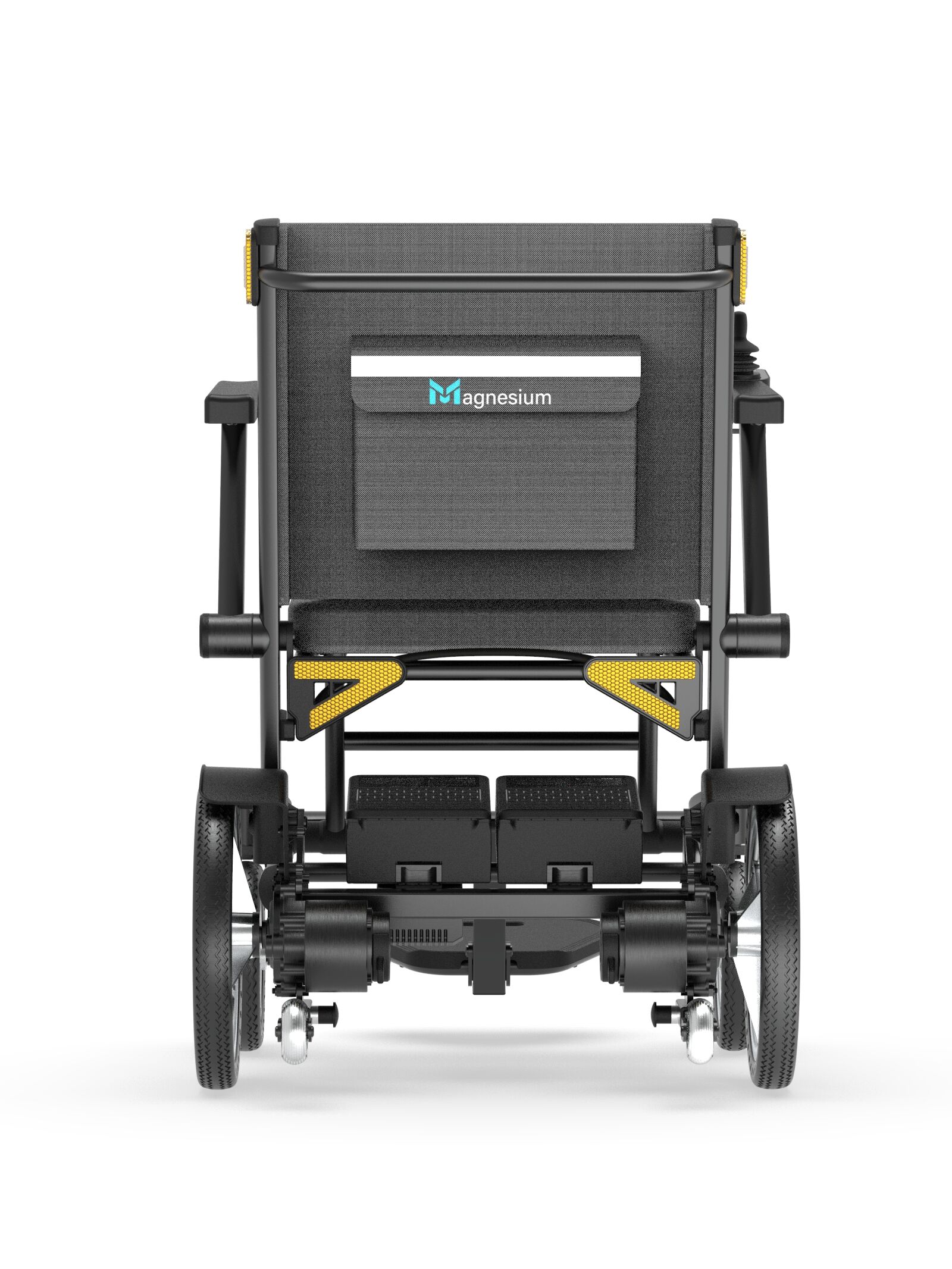

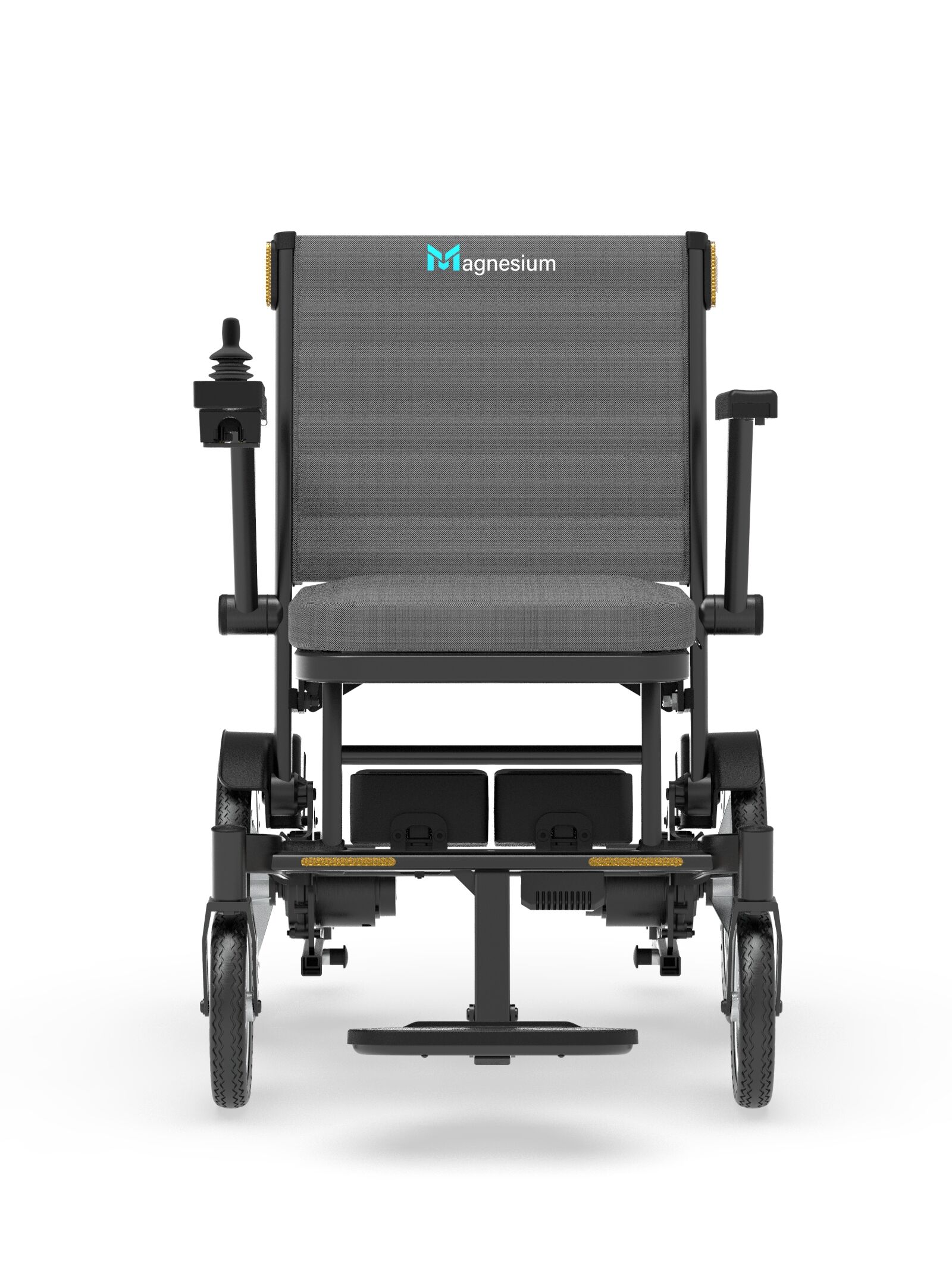

Compact Power Wheelchair for Indoor and Outdoor Use

>> Battery:24V 12Ah/20Ah/30Ah Lead-acid battery

>> Motor: 200W*2 Brush

>> Battery: 6Ah*2/10Ah*2 Lithium

>> Size(Unfolded): 85.5*92.5*57.3cm

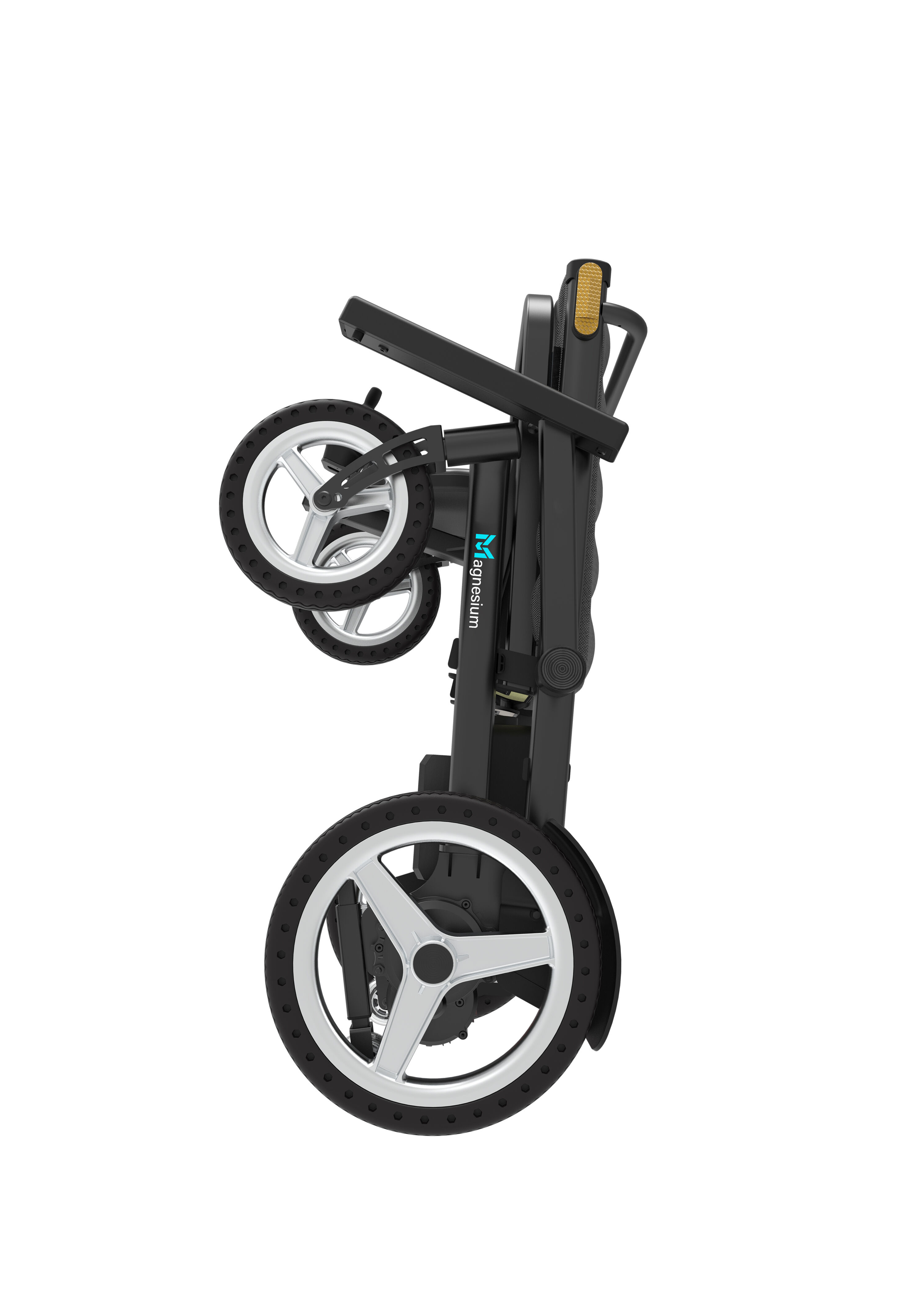

>> Size(Folded): 41*81.5*59.5cm

>> N.W(without battery): 15.9KG

inquiry now

Specifications

Model:	BC-EA8003	Driving Distance:	15-20km
Material:	Aluminium alloy	Seat:	W47.5L40T5cm
Motor:	200W*2 Brush	Backrest:	/
Battery:	6Ah2/10Ah2 Lithium	Front Wheel:	8inch
Controller:	Import 360°Joystick	Rear Wheel:	12inch
Max Loading:	120kg	Size(Unfolded):	85.592.557.3cm
Charging Time:	5-7h	Size(Folded):	4181.559.5cm
Forward Speed:	0-6km/h	Packing Size:	85.463.346cm
Reverse Speed:	0-6km/h	G.W.:	24KG
Turning Radius:	60cm	N.W.(with battery):	21.9KG
Climbing Ability:	≤12°	N.W(without battery):	15.9KG

Core Competencies

About Baichen

Our company has 60 sets of frame processing equipments such as punching machines, pipe bending machines, electric welding machines, etc.; 18 sets of injection molding machines; 3 sets of American Binks painting lines and UV plating lines; 4 sets of finished assembly lines, which occupy an important position in the field of wheelchairs in China.
Strong Technical R&D Strength

The company attaches great importance to technological innovation and has a senior R&D team. The team members can accurately grasp the industry dynamics and user needs and continuously launch innovative technologies.
Complete After-Sales Service System

The after-sales service team is composed of professionally trained technicians with rich maintenance experience and the ability to quickly solve problems.

Wheelchair Customization Service

We offer product customisation services adapted to the target market based on customer needs and preferences. This includes seat
materials, body colours, branding, additional features, etc. to meet the needs of different user groups.

Customised Reclinable

Manual / Motorised
Customised Folding

Automatic / Manual
Electronic Control Systems

Controller & Motors
Customised Battery

Capacity
Customised Cushions

Material, Colour & Thickness
Customised Logo

Print / Paste
Customised Colour

Multi-colored
Customised Packaging

Pattern & Size
Customised Wheels

Tyres & Hubs
CLICK TO
CUSTOMIZE NOW
>>

compact power wheelchair for indoor and outdoor use -8

compact power wheelchair for indoor and outdoor use -9

compact power wheelchair for indoor and outdoor use -10

compact power wheelchair for indoor and outdoor use -11

compact power wheelchair for indoor and outdoor use -12

compact power wheelchair for indoor and outdoor use -13

What Certifications Do We Have

The factory has a full range of international certifications,including ISO9001, ISO13485,CE,UKCA,UL,FDA and others. These certificates ensure the quality of the product and facilitate transport and import/export clearance.
